Werkstatt has stopped functioning

Everything Werkstatt.

Werkstatt has stopped functioning

Postby arjanhoekstra » Tue Nov 04, 2014 7:11 pm

Hi,

My Werkstatt will not switch on as of today. Nothing happens when I plug it in. I have tried to measure a few points but really this goes beyond my expertise. Anyone able to help me or share some tips on how to resolve this problem? They will be greatly appreciated. Thank you.
arjanhoekstra

Posts: 16
Joined: Tue Oct 14, 2014 2:57 pm

Re: Werkstatt has stopped functioning

Postby grenert » Tue Nov 04, 2014 10:00 pm

Has the Werkstatt been modded?
Do you know the power supply is working? If you have a multimeter, check that it is putting out 12V as expected.
Moog stuff: Slim Phatty, Minitaur, Werkstatt x2, MF-103, MF-104M, MF Chorus
Running Moog software on Win7 64-bit
Dreams of a Voyager XL some day...
grenert

Posts: 59
Joined: Thu Jun 19, 2014 4:10 pm

Re: Werkstatt has stopped functioning

Postby muksys » Tue Nov 04, 2014 11:08 pm

Are you using the power supply that came with the Werkstatt or a different one? I've killed 2 Werkstatt's and found that I was accidentally powering it with 9VDC from my benchtop power supply. The fix was replacing a burned out resistor. Check at R17 which is a 4.99k resistor. It'll look burnt if it's dead. Other than that do what grenert suggested my making sure the power supply is outputting 12VDC.

When you say nothing happens, does that mean the LFO LED doesby light up?
User avatar
muksys

Posts: 433
Joined: Thu Oct 21, 2010 5:05 am

Re: Werkstatt has stopped functioning

Postby arjanhoekstra » Wed Nov 05, 2014 12:24 am

Thank you grenert and muksys.

grenert wrote:Has the Werkstatt been modded?
Do you know the power supply is working? If you have a multimeter, check that it is putting out 12V as expected.


The workstatt has not been modded nor been tampered with. All that's been done to it is I've added a jumper cable to one of the pcb screws just like is shown in the video's on the werkstattworkshop website. I am using it's original power supply which measures an output of 12.16 Volt DC current.

muksys wrote:When you say nothing happens, does that mean the LFO LED doesby light up?


Yes, exactly that. No LED light and no sound coming from the Werkstatt.

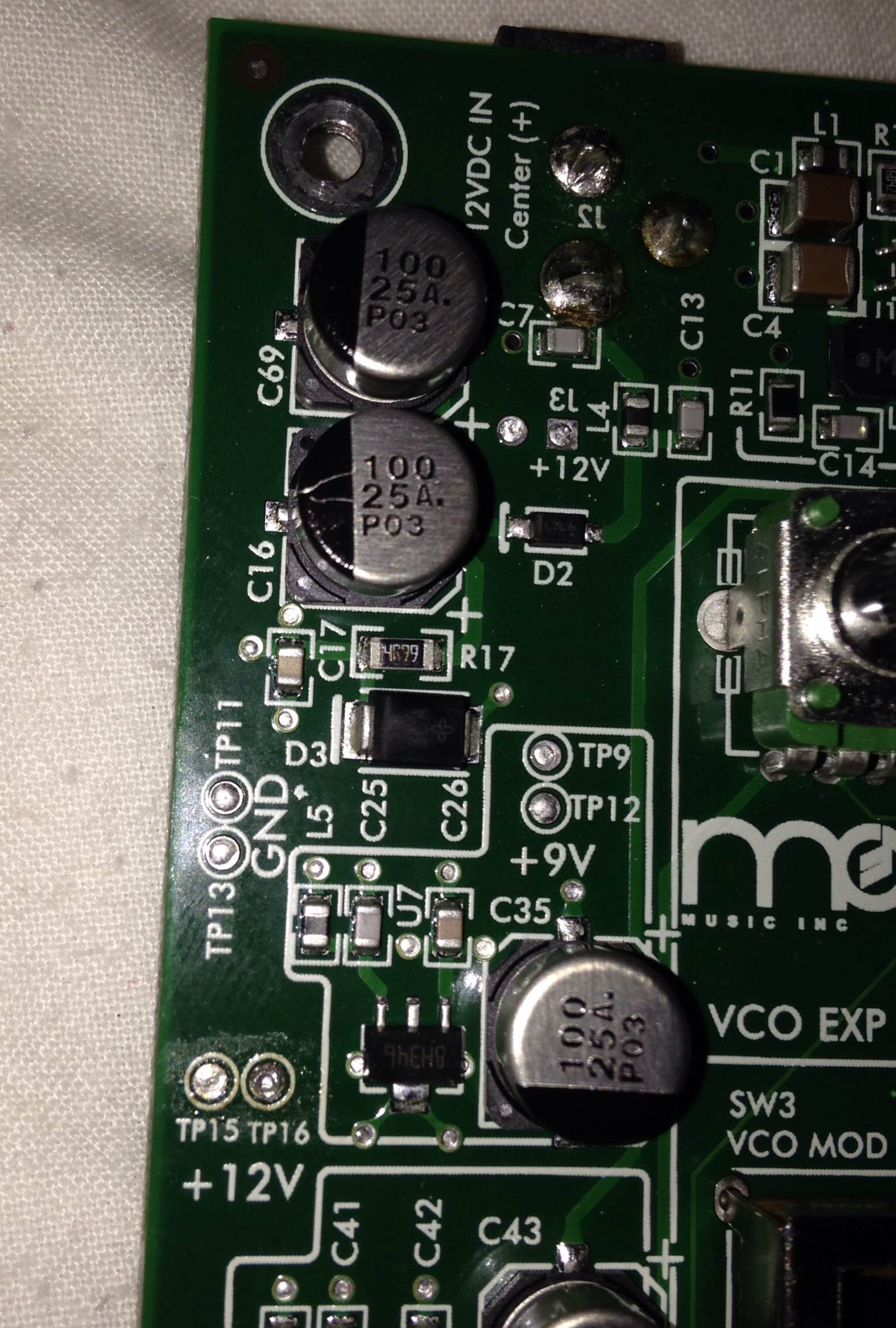

At R17 I measure 29.4 the reading seems to vary between 24 and 30 at random. I've taken a picture, does it look burned?
.JPG


I also measured 12.3 Volts with the black probe at center+ (15) and red at the one below. But when the red probe is moved over to TP15/16 I get a reading of 1.637

Thanks guys
You do not have the required permissions to view the files attached to this post.
arjanhoekstra

Posts: 16
Joined: Tue Oct 14, 2014 2:57 pm

Re: Werkstatt has stopped functioning

Postby muksys » Wed Nov 05, 2014 9:20 am

A resistors value can't be measured when it's part of a circuit. R17 needs to be removed to test it. It's hard to tell in the picture but it does look a little toasty.

The way to check the voltages is to stick the black probe on tp11 or 13 and use the red to test the different voltages. Positive voltages will read 12, 9 or 5. Negative voltages will read -9. Make sure you have the probes plugged into their corrisponding terminals on the meter. The black should be plugged into to COM port.
User avatar
muksys

Posts: 433
Joined: Thu Oct 21, 2010 5:05 am

Re: Werkstatt has stopped functioning

Postby bichuelo » Wed Nov 05, 2014 9:27 am

I'm no expert but it looks burnt to my sight
http://audiotecna.info
T-III, Voyager, VX-351, Slim Phatty, Model D, Sub Phatty, Sub 37, Minitaur, all moogerfoogers and minifoogers, EW+, Theremini, Model 15 App, Filtatron Animoog, iOS 10 Mother-32, Werkstatt, Windows 7, Capitan, Snow Leopard, WinXP
User avatar
bichuelo

Posts: 578
Joined: Fri Jan 22, 2010 5:25 pm
Location: Bogotá, Colombia

Re: Werkstatt has stopped functioning

Postby grenert » Wed Nov 05, 2014 10:03 am

muksys wrote:Check at R17 which is a 4.99k resistor.

Just a clarification, this resistor should be 4.99 ohms, at least according to the schematic (and the resistor itself looks to be marked 4R99).
With the power supply plugged in, put the ground lead (black) of your meter on a ground test point. Then put the red lead first on the left terminal of the resistor and measure DC volts. It should be around 12V. Then move the red lead to the right end of the resistor. It should still be around 12V.
Moog stuff: Slim Phatty, Minitaur, Werkstatt x2, MF-103, MF-104M, MF Chorus
Running Moog software on Win7 64-bit
Dreams of a Voyager XL some day...
grenert

Posts: 59
Joined: Thu Jun 19, 2014 4:10 pm

Re: Werkstatt has stopped functioning

Postby arjanhoekstra » Wed Nov 05, 2014 11:54 am

muksys wrote:A resistors value can't be measured when it's part of a circuit. R17 needs to be removed to test it. It's hard to tell in the picture but it does look a little toasty.


I agree with you there it does look a little toasty.

muksys wrote:The way to check the voltages is to stick the black probe on tp11 or 13 and use the red to test the different voltages. Positive voltages will read 12, 9 or 5. Negative voltages will read -9. Make sure you have the probes plugged into their corrisponding terminals on the meter. The black should be plugged into to COM port.


So I've just measured all voltages the way you've described. +12 reads 1.637vdc. +9 reads 0.231vdc. -9 reads -2.050. +5 reads 0.591vdc. Anything else I should look at?

grenert wrote:
muksys wrote:Check at R17 which is a 4.99k resistor.

Just a clarification, this resistor should be 4.99 ohms, at least according to the schematic (and the resistor itself looks to be marked 4R99).
With the power supply plugged in, put the ground lead (black) of your meter on a ground test point. Then put the red lead first on the left terminal of the resistor and measure DC volts. It should be around 12V. Then move the red lead to the right end of the resistor. It should still be around 12V.


Just done exactly as you say. Measuring 1.636 on the left side and 11.90 on the right side of the resistor.

Thanks guys, much appreciated
arjanhoekstra

Posts: 16
Joined: Tue Oct 14, 2014 2:57 pm

Re: Werkstatt has stopped functioning

Postby muksys » Wed Nov 05, 2014 12:11 pm

Yep, my mistake. It's 4.99 ohms. Sounds like it's dead. If you're not comfortable with doing SMD desoldering, this is something I can fix for you if moog won't warranty it.
User avatar
muksys

Posts: 433
Joined: Thu Oct 21, 2010 5:05 am

Re: Werkstatt has stopped functioning

Postby Control_Voltage » Fri Nov 07, 2014 9:54 am

Hi there,

Andy Hughes from Moog Music here!

If the Werkstatt has not been modded, we will of course be happy to perform this repair under warranty at no charge, and give the unit a full test to make sure there is not a fault somewhere else on the board that caused the resistor to burn, and we will check your PSU as well.

Please contact me at andy@moogmusic.com or by phone (828)251-0090 xt. 221

Thanks,
Andy Hughes
Tech Support Manager
Moog Music, Inc.
Control_Voltage

Posts: 119
Joined: Mon Sep 16, 2013 12:59 pm

Re: Werkstatt has stopped functioning

Postby grenert » Sun Nov 09, 2014 12:18 pm

muksys wrote:Are you using the power supply that came with the Werkstatt or a different one? I've killed 2 Werkstatt's and found that I was accidentally powering it with 9VDC from my benchtop power supply.

Wow, I almost just did this exact same thing. :shock:
Fortunately, I have enough experience frying circuits that I smelled that something was wrong and pulled the power supply before the resistor was fully fried.
I haven't really looked at the Werkstatt power supply circuit, but what a weird thing that giving a LOWER voltage to a device causes problems!
Moog stuff: Slim Phatty, Minitaur, Werkstatt x2, MF-103, MF-104M, MF Chorus
Running Moog software on Win7 64-bit
Dreams of a Voyager XL some day...
grenert

Posts: 59
Joined: Thu Jun 19, 2014 4:10 pm

Re: Werkstatt has stopped functioning

Postby arjanhoekstra » Thu Nov 27, 2014 11:35 am

This issue has been resolved. Thanks to everyone posting in this thread and the excellent service at Moog music.
arjanhoekstra

Posts: 16
Joined: Tue Oct 14, 2014 2:57 pm

Re: Werkstatt has stopped functioning

Postby muksys » Sat Nov 29, 2014 12:03 am

arjanhoekstra wrote:This issue has been resolved. Thanks to everyone posting in this thread and the excellent service at Moog music.


What ended up being the issue?
User avatar
muksys

Posts: 433
Joined: Thu Oct 21, 2010 5:05 am

Re: Werkstatt has stopped functioning

Postby arjanhoekstra » Sun Nov 30, 2014 4:29 pm

Burned resistor at R17. I don't know how this has happened, as mentioned, no modifications where done to the Werkstatt.
arjanhoekstra

Posts: 16
Joined: Tue Oct 14, 2014 2:57 pm

Re: Werkstatt has stopped functioning

Postby muksys » Sun Nov 30, 2014 8:42 pm

Interesting. That resistor is sensitive. I've fried it out from using a wrong power supply to shorting contacts to ground. I've never had a PS on a syth with such a sensitive part. Seems like a bad design choice for something thats intended to be user modifiable.
