Search found 101 matches

by gencomprodukts
Tue Jan 14, 2020 8:46 am
Forum: Moog Music General Topics Forum
Topic: Memorymoog issue, help is needed.
Replies: 42
Views: 1787

Re: Memorymoog issue, help is needed.

You right, i need a break. I'm too tired with this now :| but just to know, where should i exactly connect this clip lead on the Common analog board ? Could you please show me on the schematics or send a picture when you get time ? Thanks in advance !

P.s : I'll send you a private message :wink:
by gencomprodukts
Mon Jan 13, 2020 6:36 pm
Forum: Moog Music General Topics Forum
Topic: Memorymoog issue, help is needed.
Replies: 42
Views: 1787

Re: Memorymoog issue, help is needed.

Thanks for your answer Mark and ok for P42 :wink:
Nope, no cable plugged into the clock in jack when i try to use the internal clock.
Unfortunately i think i'll give up for this issue, indeed we've tried almost everything.
Too bad...
by gencomprodukts
Sun Jan 12, 2020 4:27 pm
Forum: Moog Music General Topics Forum
Topic: Memorymoog issue, help is needed.
Replies: 42
Views: 1787

Re: Memorymoog issue, help is needed.

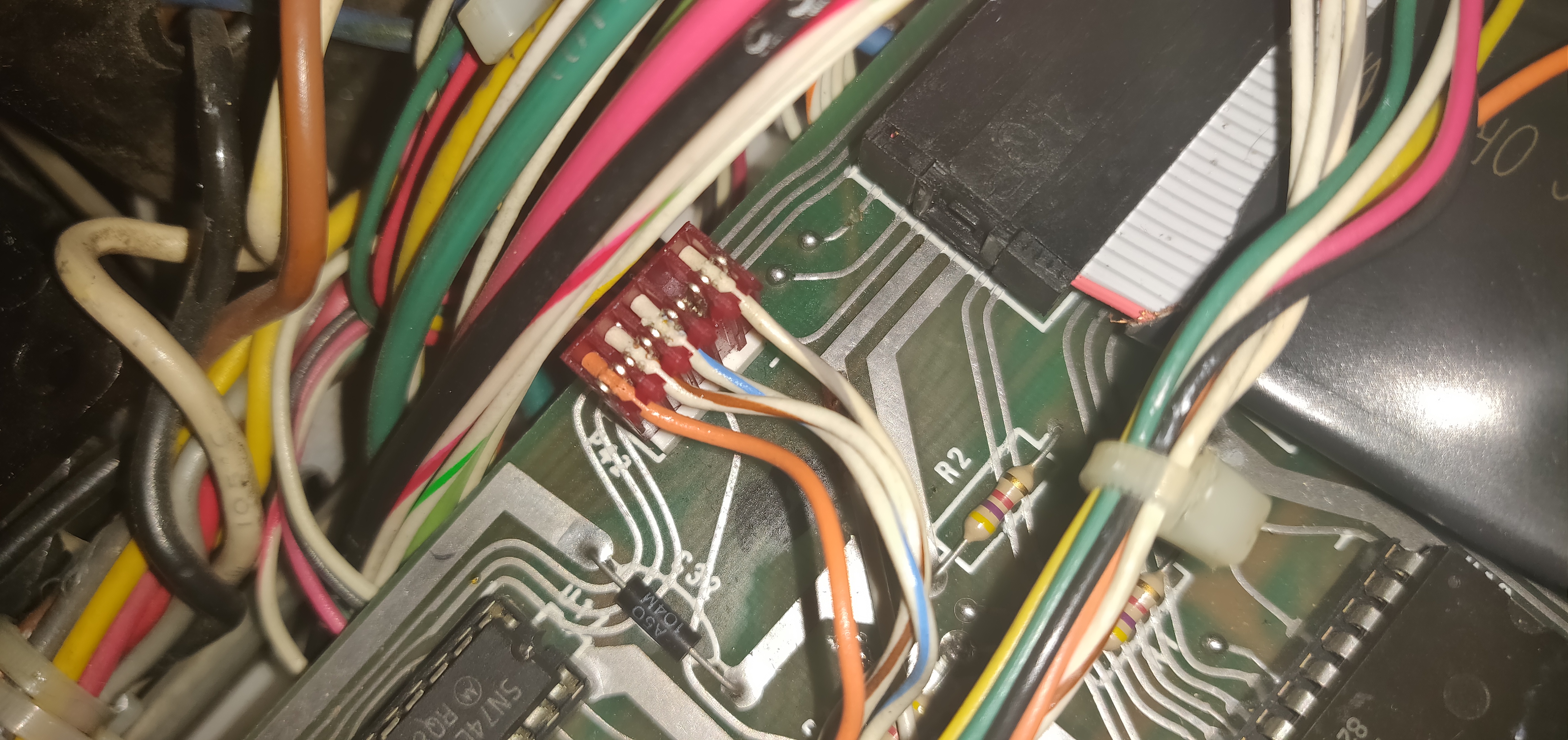

I've seen on the schematics that the signal goes to P42 (pin 2) on the Digital Board and after a check i saw this. A wire is missing on pin 2. It's strange because there's no free wires into the MM+ but maybe i'm wrong. Is there only 4 soldered wires to P42 ?
by gencomprodukts
Sun Jan 12, 2020 3:56 pm
Forum: Moog Music General Topics Forum
Topic: Memorymoog issue, help is needed.
Replies: 42
Views: 1787

Re: Memorymoog issue, help is needed.

Coming back with my report :wink: So i've tried everything but Unfortunately it didn't work out. I even cleaned once again the pins and sockets with Deoxit but nope, it doesn't seems to be a faulty ribbon cable. :cry: P517 looks also perfect as well and pushing on the connector while the arpeggiator...
by gencomprodukts
Sun Jan 12, 2020 2:45 pm
Forum: Moog Music General Topics Forum
Topic: Memorymoog issue, help is needed.
Replies: 42
Views: 1787

Re: Memorymoog issue, help is needed.

All right Mark, I'll do that asap and let u know. I hope that this will work, I cross my fingers.
Thanks.
by gencomprodukts
Sun Jan 12, 2020 1:07 pm
Forum: Moog Music General Topics Forum
Topic: Memorymoog issue, help is needed.
Replies: 42
Views: 1787

Re: Memorymoog issue, help is needed.

Hi Mark, First i hope you're doing well :wink: Thanks for all these informations ! Yes, i confirm that the Square wave LFO is working fine sound-wise and i can see the LED respond to the rate. I already removed, cleaned the pins and re-seated the ribbon cables going from the CA board to the Digital ...
by gencomprodukts
Sat Jan 11, 2020 10:57 pm
Forum: Moog Music General Topics Forum
Topic: Memorymoog issue, help is needed.
Replies: 42
Views: 1787

Re: Memorymoog issue, help is needed.

Thanks mark ! I also do beleive that the problem is relatively easy to resolve. Unfortunatetly i don't have the part number for the jack socket. Reason is that to be precise i've replaced it with one that i took from an Boss Pedal but in both case it failled. And some weeks ago i even put the origin...
by gencomprodukts
Sat Jan 11, 2020 6:35 pm
Forum: Moog Music General Topics Forum
Topic: Memorymoog issue, help is needed.
Replies: 42
Views: 1787

Re: Memorymoog issue, help is needed.

Well, regarding the Hold function, both buttons (Hold and Mono) could be lit up when engaged but anyway, It's resolved now ;) Are you serious ? You also do have the same issue with the Arpeggiator ? We're damned lol ! I tried your trick with the midi cable but unfortunately there's no change. I can ...
by gencomprodukts
Sat Jan 11, 2020 4:58 pm
Forum: Moog Music General Topics Forum
Topic: Memorymoog issue, help is needed.
Replies: 42
Views: 1787

Re: Memorymoog issue, help is needed.

Hi Mark, thanks for your answer and well done for this ! Once again you're the boss :D Well, the hold function works well now but i'm not sure to understand what you mean by "working in Poly Mode". Indeed, a chord created with the Hold function is only used monophonically (the chord is transposed wi...
by gencomprodukts
Sat Jan 11, 2020 2:31 pm
Forum: Moog Music General Topics Forum
Topic: Memorymoog issue, help is needed.
Replies: 42
Views: 1787

Re: Memorymoog issue, help is needed.

Hey, i know that you're at the NAMM show (and i hope you enjoy it!) but i'm coming back with my report and i've got a good news, It works now ! Congrats, you're the boss ! :D So, it was U8 (CEM3360) on the Common Glide board. I've just reseated and cleaned the socket with deoxit (there was a litle b...
by gencomprodukts
Fri Jan 10, 2020 10:59 am
Forum: Moog Music General Topics Forum
Topic: Memorymoog issue, help is needed.
Replies: 42
Views: 1787

Re: Memorymoog issue, help is needed.

Thanks for your kind words & you right, i won't give up :wink: My name's Laurent and you ? Ok for the CPU and no problem if you can't answer right after my report, anyway there's no hurry. Once again i REALLY appreciate what's you're doing for me, respect ! Ps : the Nec D780C was a Z80 compatible CP...
by gencomprodukts
Fri Jan 10, 2020 9:09 am
Forum: Moog Music General Topics Forum
Topic: Memorymoog issue, help is needed.
Replies: 42
Views: 1787

Re: Memorymoog issue, help is needed.

Hi Markyboard, Thanks ! All right, i'll do each step asap, probably on sunday and send my report when it's done. Unfortanetly i don't have a digital volt meter. If nothing changes maybe i should directly change the CPU, don't you think ? I read somewhere that it's a Z80-z84c0006peg CMOS 6 MHz dip40 ...
by gencomprodukts
Thu Jan 09, 2020 4:34 pm
Forum: Moog Music General Topics Forum
Topic: Memorymoog issue, help is needed.
Replies: 42
Views: 1787

Re: Memorymoog issue, help is needed.

All right, i understand and once again i want to thank you very much for your time !
Please let me know if you find something else for this but also my Arp. issue :wink:
by gencomprodukts
Thu Jan 09, 2020 4:28 pm
Forum: Moog Music General Topics Forum
Topic: Memorymoog issue, help is needed.
Replies: 42
Views: 1787

Re: Memorymoog issue, help is needed.

Too bad, it doesn't work so it wasn't these chips :roll:
by gencomprodukts
Thu Jan 09, 2020 4:26 pm
Forum: Moog Music General Topics Forum
Topic: Memorymoog issue, help is needed.
Replies: 42
Views: 1787

Re: Memorymoog issue, help is needed.

All right, please hold down, i'll check out right now :)
